Simba Series Cased (SSC)

High-Performance Dust Extraction. Engineered for Demanding Environments.

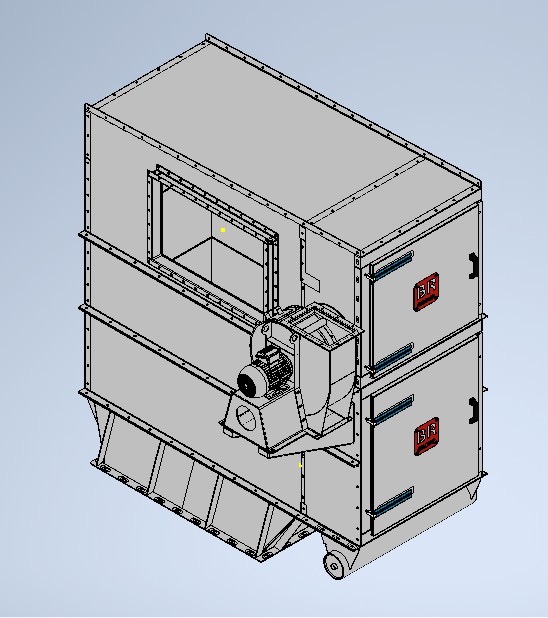

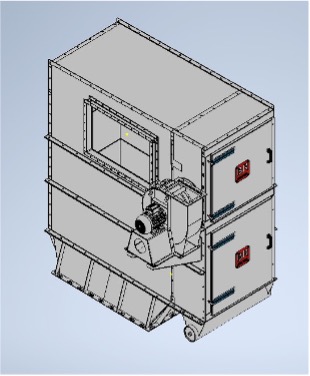

The Simba Series Cased (SSC) is a robust, self-contained filtration solution engineered to handle high dust loads with maximum efficiency. Its compact design ensures seamless integration into a wide range of industrial environments while maintaining powerful performance.

Each unit can be equipped with an integral fan system or paired with a base-mounted external fan, providing flexibility to meet specific operational requirements. Dust-laden air is extracted directly from the source via circular ducting, ensuring effective contamination control at its origin.

An advanced automatic reverse pulse cleaning system ensures continuous operation by keeping filter media clean and performing at optimal efficiency.

Collected dust is efficiently discharged via a rotary valve or stored in a collection bin, offering adaptable material handling solutions.

FILTER UNIT RANGE

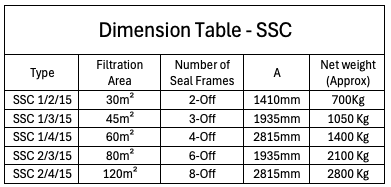

  • Available in sizes from 10 m² to 90 m²
  • Designed for scalability across small to large industrial applications
  • Optimized for high dust concentration environments

FAN CONFIGURATIONS

  • Integrated “E” Series fans available from 1.5 kW to 7.5 kW
  • Larger air volumes supported with custom-specified external fans
  • Equipped with high-efficiency backward curved impellers:
    • Reduced energy consumption
    • Improved airflow performance
    • Lower operational costs

PRINCIPLE OF OPERATION

The SSC system operates using a unique downflow filtration design, delivering superior dust separation efficiency while minimizing internal turbulence.

Dust-laden air enters the filter unit where:

  • Air velocity is reduced, allowing natural particle separation
  • Fine dust particles are captured on the outer surface of the filter media
  • Clean air passes through the filter and is discharged via the fan system

To maintain peak performance, the system utilizes automatic reverse pulse cleaning:

  • High-pressure air pulses are injected into the filter bags
  • Airflow is momentarily reversed
  • Filter bags expand, releasing accumulated dust (“dust cake”)
  • Dust falls into the hopper for discharge or collection

This process ensures continuous, uninterrupted operation with minimal maintenance.

KEY FEATURES & OPTIONS

Enhance your SSC system with a full range of advanced features:

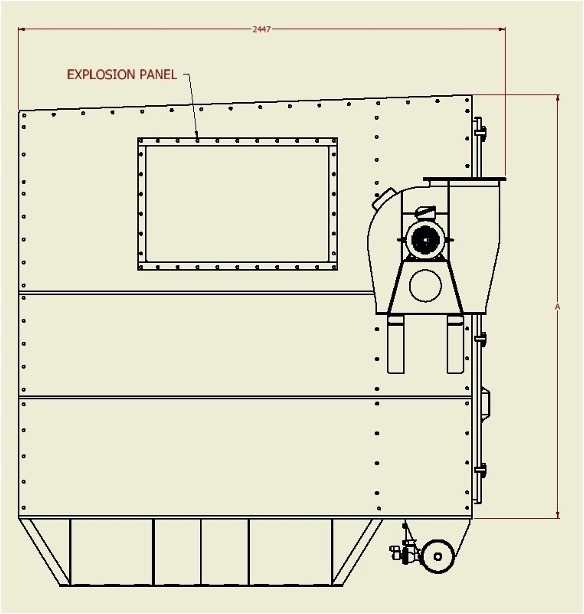

  • Explosion venting systems
  • Anti-static design options
  • High-temperature configurations
  • ATEX compliance
  • Differential pressure (DP) pulse controllers
  • Photohelic & Magnehelic DP gauges

INDUSTRIES SERVED

The SSC range is trusted across a wide spectrum of industries:

  • Cement & Mining
  • Food & Beverage
  • Agriculture & Milling (Maize)
  • Pharmaceutical
  • Paints & Pigments
  • Foundry & Automotive
  • Pulp & Paper
  • Woodworking
  • Rubber & Plastics
  • Tobacco

General Engineering



ADDITIONAL SERVICES

We support your operation beyond installation:

  • Inspection & Maintenance Programs
  • Emission Testing & Compliance Measurement
  • Leak Detection Services
  • Remote & Off-Site Monitoring Solutions

WHY CHOOSE THE SSC?

Compact, space-efficient design
✔ Built for high dust-load environments
✔ Energy-efficient performance
✔ Continuous operation with minimal downtime
✔ Customizable to your process needs

SIMBA SERIES :
ENGINEERING CLEANER, MORE EFFICIENT INDUSTRIES

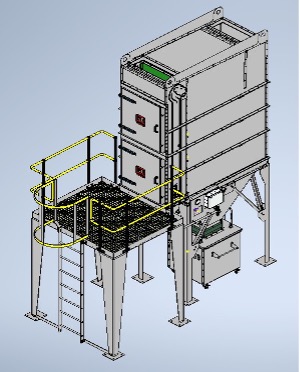

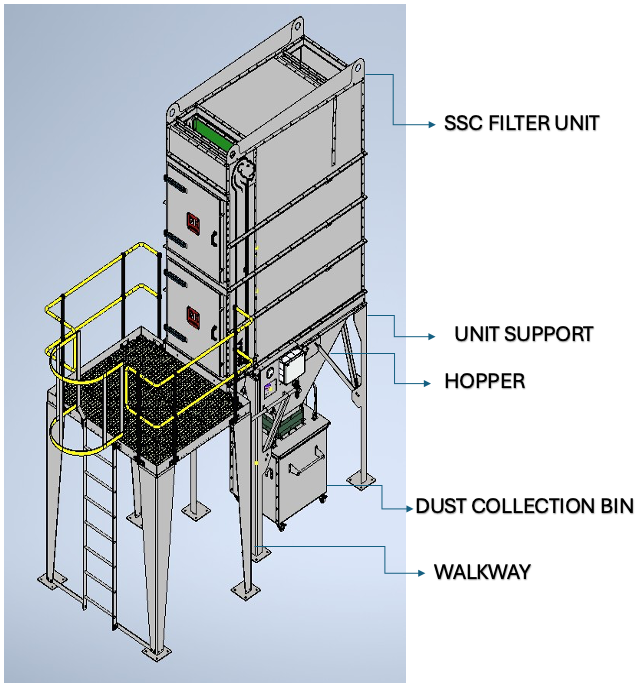

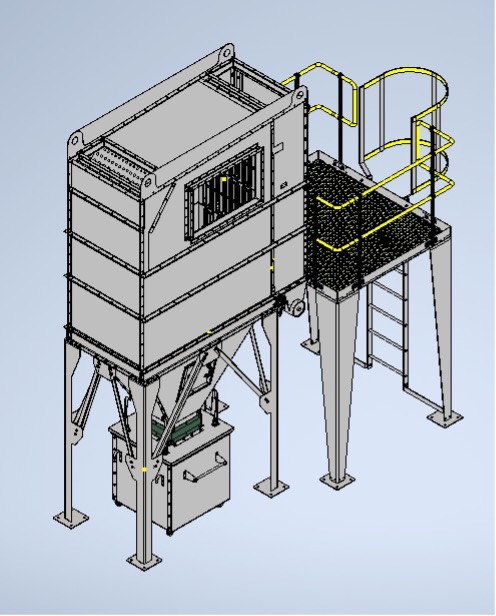

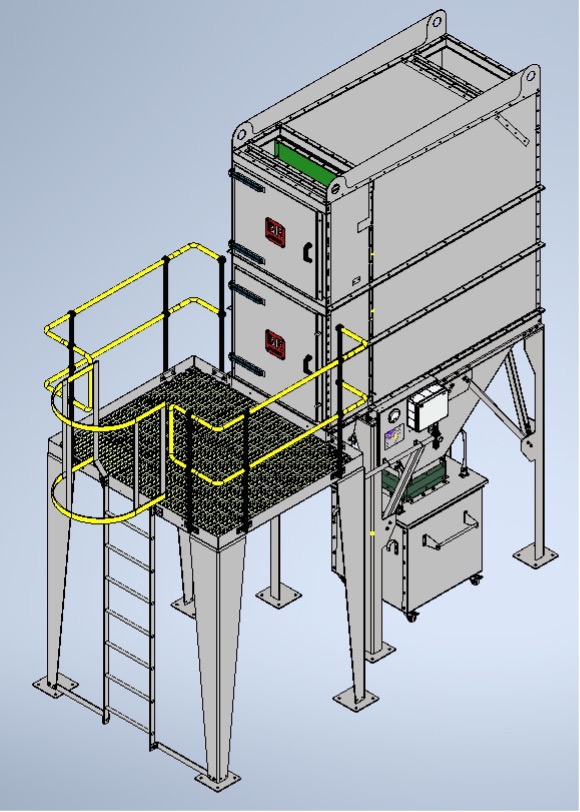

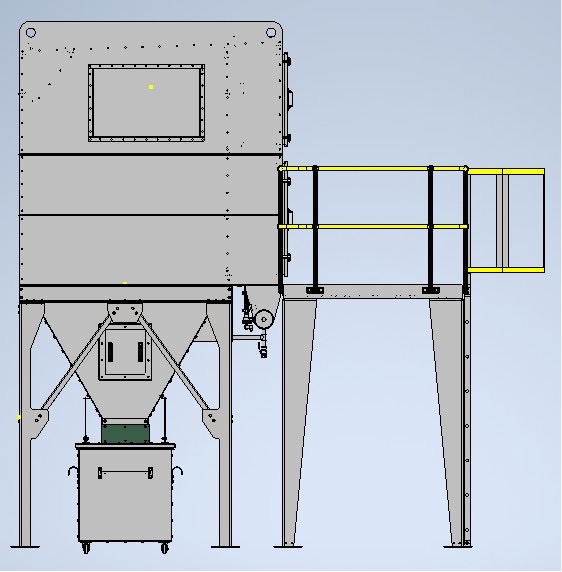

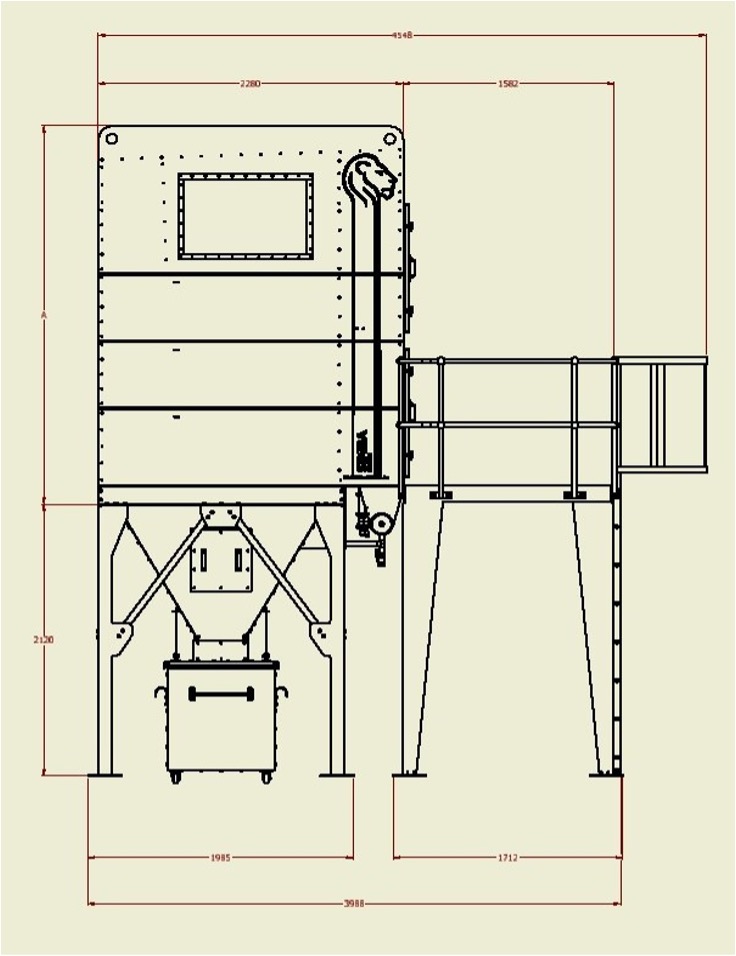

Simba Series Cased With Hopper and Bin

  • Controller Electric Specifications:

Electric Power:

  • 115 Vac ± 10% 50-60 Hz – 25 W
  • 230 Vac ± 10% 50-60 Hz – 25 W
  • 24 Vac ± 10% 50-60 Hz – 25 W (Optional)
  • 24 Vdc ± 10% – 25 W (Optional)

Selectable Output Voltage:

  • 24 Vdc
  • 24 Vac
  • 115 Vac
  • 230 Vac

Working Temperature:

  • From -10 °C to 60°C

Timer Specifications:

Pulse Time (Valve Opening)

  • From 50 msec to 5 sec

Pause Time (Interval Between Valve Openings):

    • 1 sec to 999 sec

SPECIFICATIONS Service: Air and non-combustible, compatible gases. (Natural Gas option available.)

Housing: Die cast aluminum case and bezel, with acrylic cover. (MP model has polycarbonate cover).

Accuracy: ±2% of full scale (±3% on – 0, -100 Pa, -125 Pa, 10MM and ±4% on -00, – 00N, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).

Pressure Limits: -20˝ Hg to 15 psig.† (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).

Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. The blowout plug is not used on models above 180 inches of water pressure, medium or high pressure models, or on gages which require an elastomer other than silicone for the diaphragm.

Temperature Limits: 20 to 140°F (-6.67 to 60°C). *Low temperature models available as special option. Size: 4˝ (101.6 mm) diameter dial face.

Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.

 Process Connections: 1/8˝ female NPT duplicate high and low pressure taps – one pair side and one pair back.

Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).

Agency Approvals: RoHS.

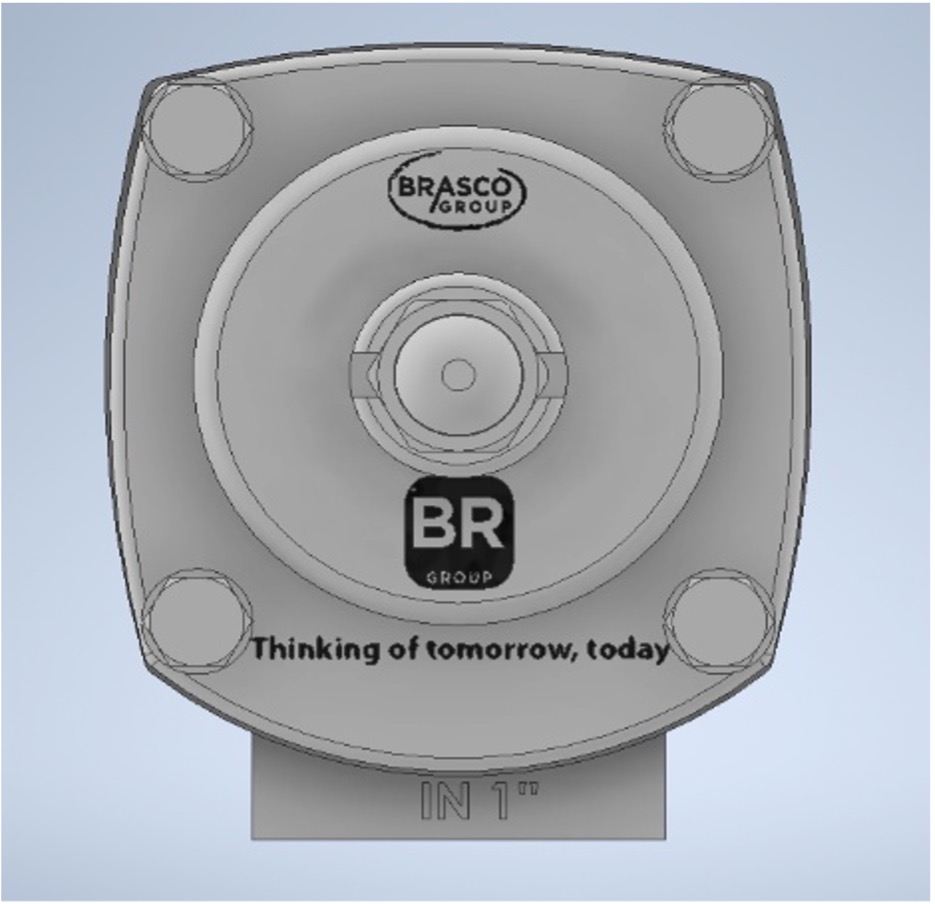

  • Fluids: Non-lubricated filtered air

Operating temperature:

  • Nitrile diaphragm -20°C; +80°C
  • Viton diaphragm -20°C; +200°C
  • Operating pressure between 0.5 and 7.5 bar

Body and cover: Die-cast aluminum

Pilot unit: Stainless steel

Screws and bolts: Stainless steel

Coil insulation: Class H

Connector: PG 9 EN175301-803

Connector + coil protection: IP65 EN60529

Standard voltage:

  • 24V/50-60Hz (±10%) 19VA
  • 115V/50-60Hz (±10%) 19VA
  •  230V/50-60Hz (±10%) 19VA
  •  24VDC (± 10%) 18 Watt
